The platform

One drone. Every confined space.

Tethered. Unlimited. Built for contact.

For assets that block GPS, swallow light, and punish contact. One platform, four payloads, one tablet.

Scout 137 Gen 3 — studio render showing the ducted-propeller cage, hot-swap payload bays, 128-beam LiDAR, 4K camera, lighting and the tether trailing
Min. opening
600 mm
Flight time
Unlimited
Payload bays
Hot-swap
Localisation
GPS-free SLAM
Lighting
12 000 lm

Why it works

A platform designed for the assets others can’t reach.

Five design choices change what’s possible inside a confined industrial space.

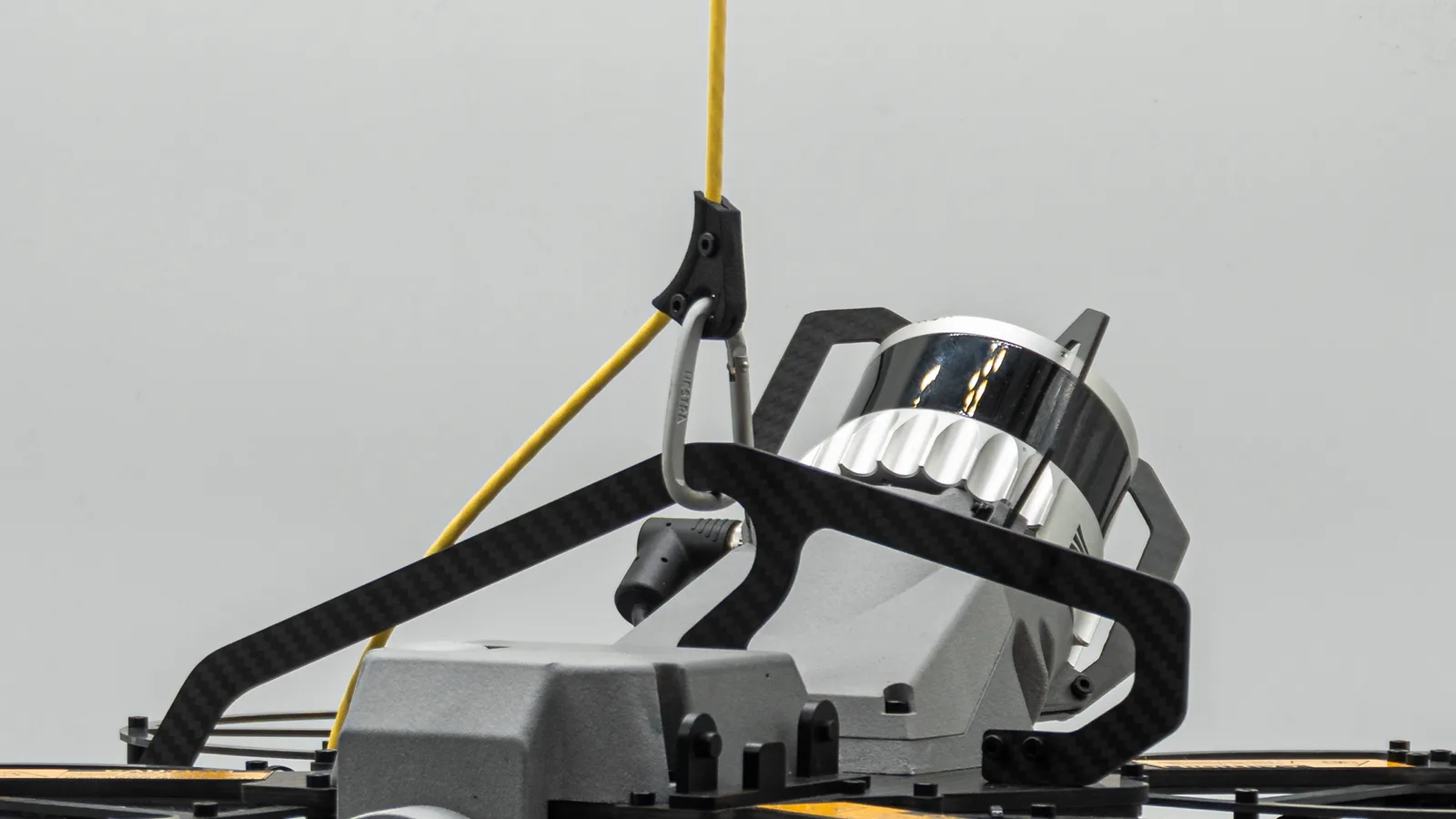

Close-up of the Scout 137 Gen 3 Tether Deployment System — the yellow tether clipped by carabiner to the drone's carbon-fibre frame above the LiDAR

Tethered architecture

Unlimited flight time. No stress.

One 60-metre tether carries power and data — never radio. No battery in the drone, none in the ground station.

  • TDS. The Tether Deployment System deploys and recovers the drone on the tether itself: a controlled launch and retrieval every flight.
  • No RF, anywhere. No transmitters, no GPS receiver — nothing to intercept, jam or spoof.
  • No fire hazard. No lithium-ion enters the asset, and nothing to strand the drone mid-flight.
  • Grounds static. 1+ hour propane-chamber test — no ignition.

Virtual cage

Easy and safe to operate.

Contact without incident. A LiDAR virtual cage actively stops the drone before it touches; physical-cage drones just bounce off a bulky shell. You fly into smaller openings and closer to structure with no expert stick skills; the cage stays live in the dark, or off when you need contact. And it keeps working beyond line of sight, so the drone is just as protected deep inside the asset as it is at the hatch.

You set the cage size to fit the job — tighten the boundary for tight clearances, or widen it for more margin. And the drone itself is a robust, lightweight carbon-fibre build — made to take contact, and compact enough to maximise access into the tightest assets.

Learn how to operate it — go to Scout Academy

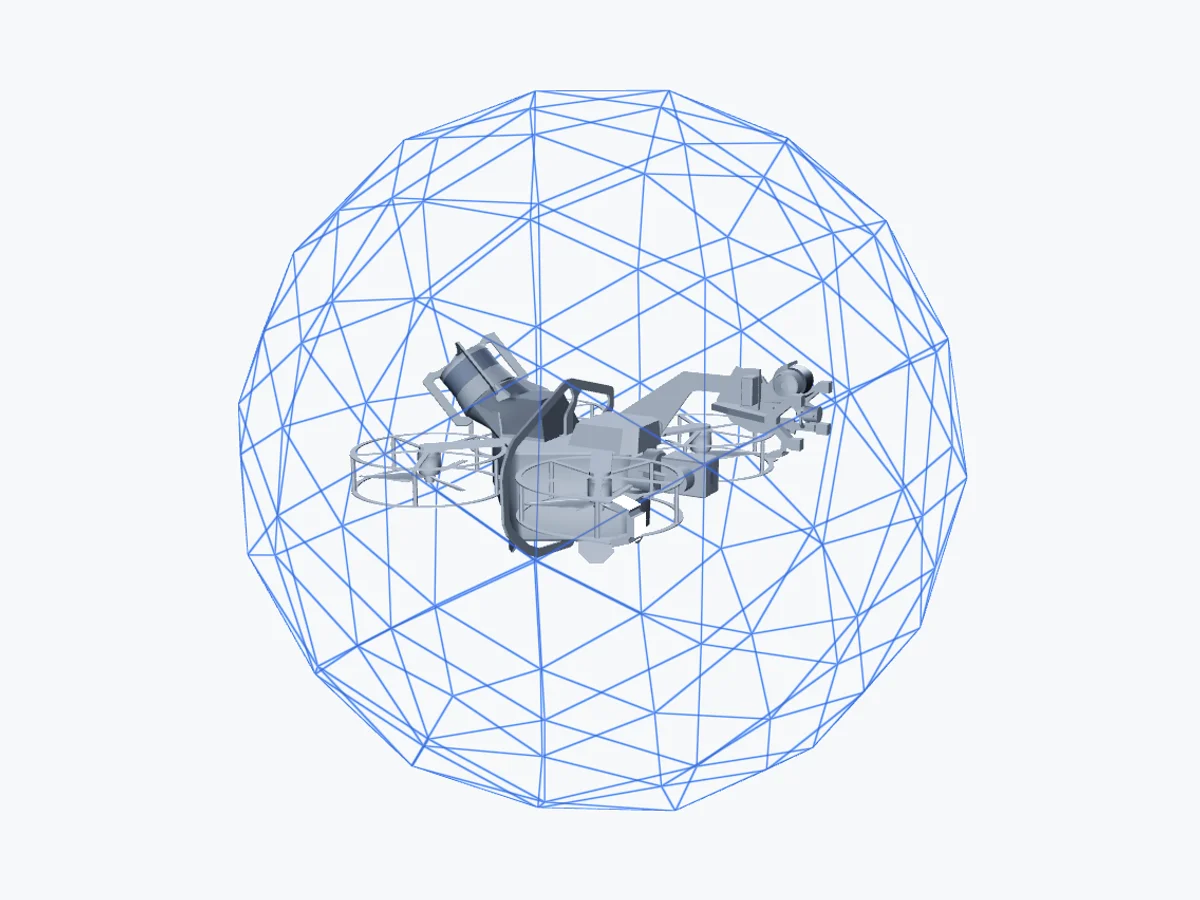

The Scout 137 Gen 3 LiDAR virtual cage fully closed around the drone — the geodesic boundary the drone will not cross

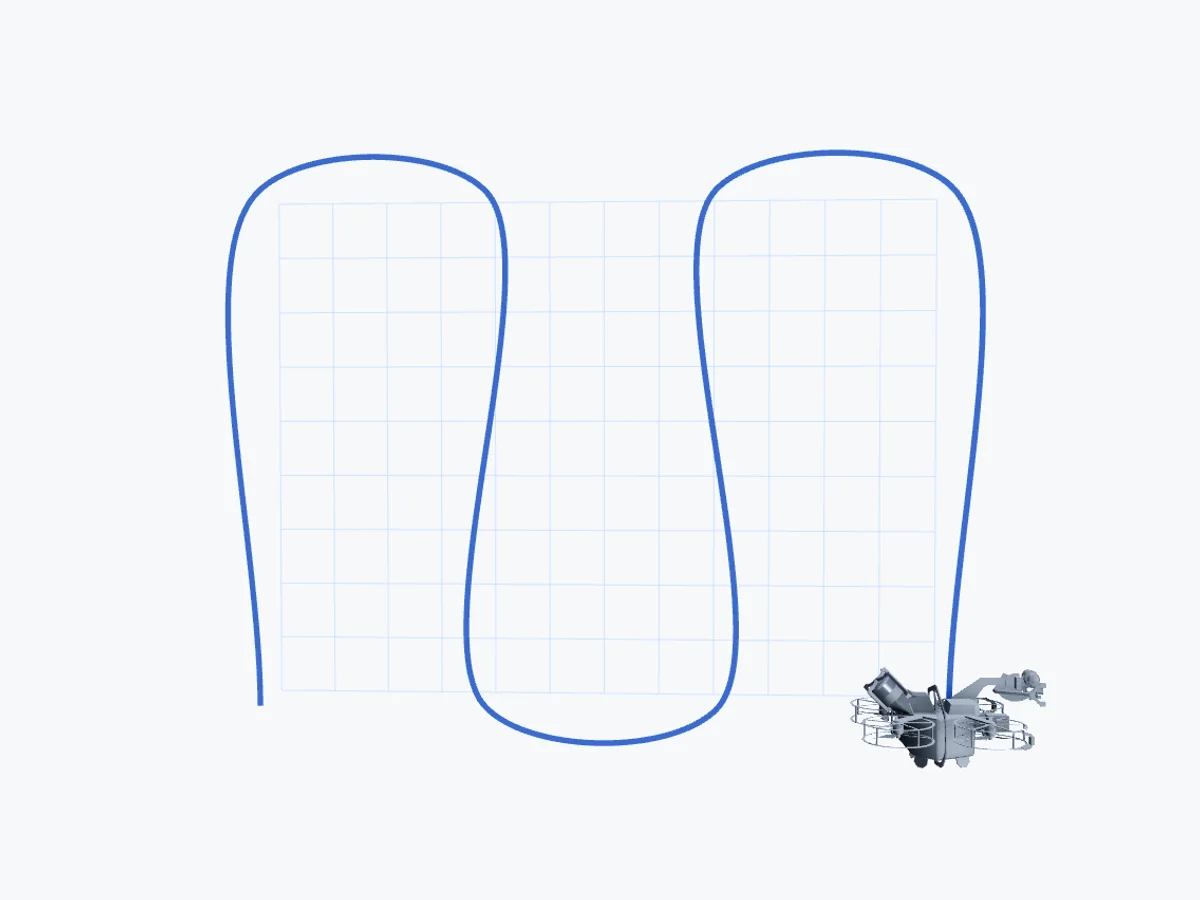

Scout 137 Gen 3 after a completed Auto Line Scan — the flight path covering the full surface grid

Autonomy

Does the job itself.

Auto Surface Scan, Auto Line Scan and Distance Lock fly the repetitive geometry on their own — the same coverage every flight, captured hands-free. The consistent, overlapping passes are ideal for photogrammetry. The pilot supervises; the drone executes.

It always knows exactly where it is — indoors and GPS-free — on 128-beam LiDAR and SLAM, tagging every frame to its position in the asset.

Point clouds, data deliverables and full LiDAR specs →

Modular payload bays

One platform. Four missions.

Four payloads, multiple bays: 4K Zoom Camera, LiDAR and gas sensor standard, UT optional. An onboard NVIDIA Jetson Orin NX processes perception and SLAM in real time, with headroom for the payloads still to come. See the four payloads ↓

Future-proof by design: the platform you buy today keeps gaining capability as new payloads ship — continuous value from the same drone, not a fixed spec sheet. Got a payload in mind? Tell us what to build →

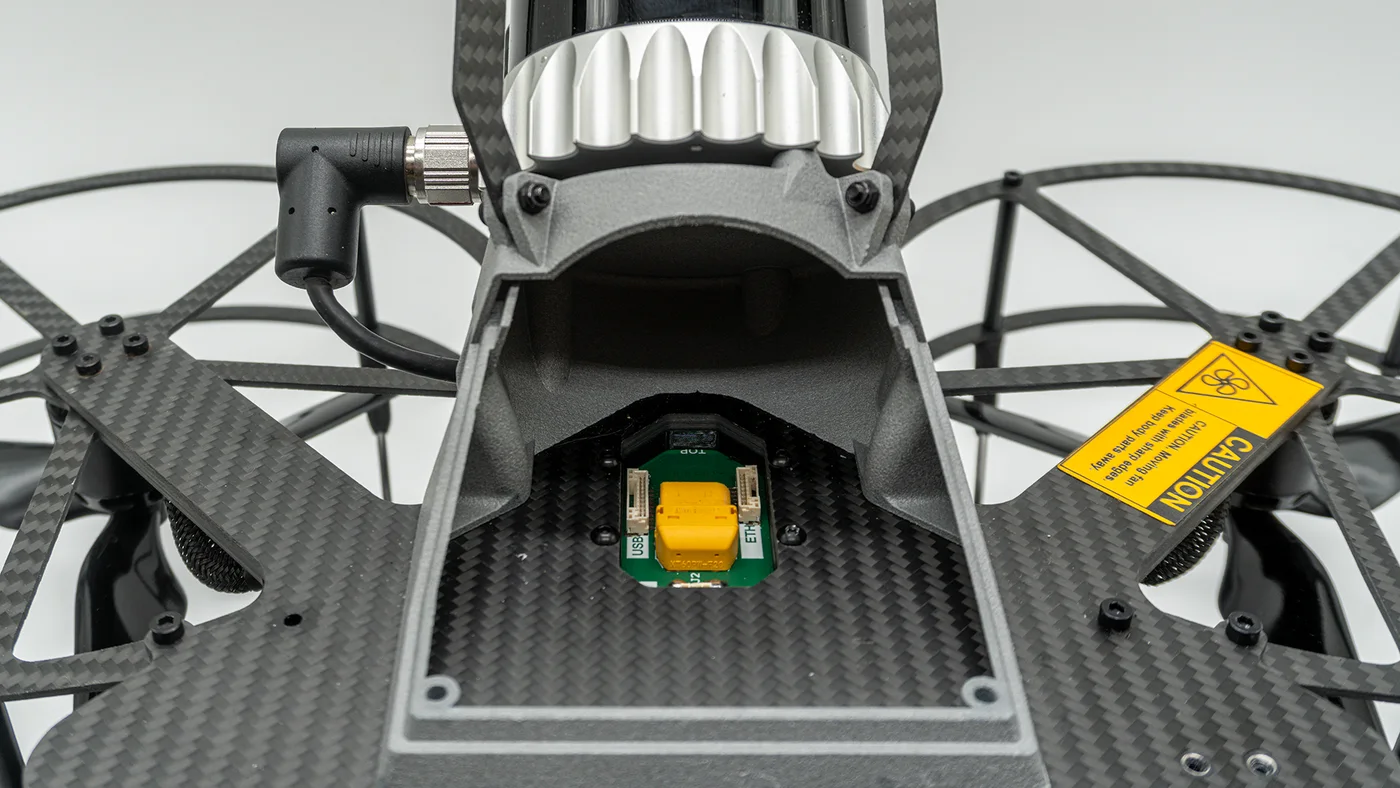

Scout 137 Gen 3 modular payload bay — the carbon-fibre bay and electrical mounting interface where a hot-swap payload fits

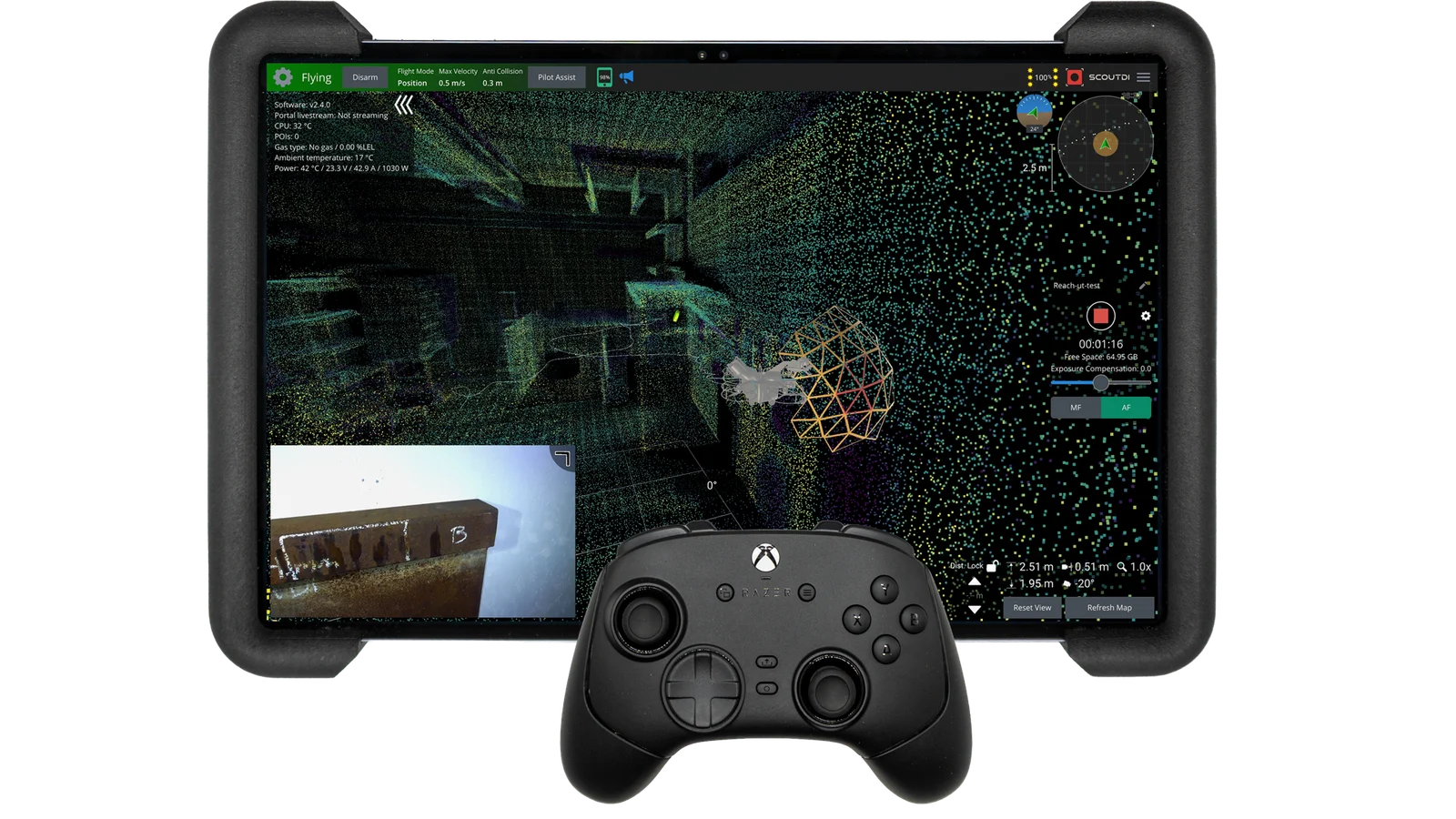

Scout Operator on the rugged 14.6-inch pilot tablet with hand controller — high-resolution live video, the SLAM point cloud and the virtual cage on one screen

Operator-first cockpit

Built around the operator.

One 14.6″ tablet runs the whole flight — chosen for the operator, not the spec sheet: a big, bright, crystal-clear screen that reads perfectly in any conditions, dark or bright, and powerful enough to run high-resolution live video and the SLAM 3D map at once. Simple to set up and fly, with nothing to charge or swap — connected to the ground station, the whole system stays powered for long missions. Run it on a tripod stand or in a wearable chest vest, with the rugged hand controller for precise flight. See the full specifications ↓

See it fly

Dust. Darkness. Narrow tunnels.

A Scout 137 Gen 3 flight through a dust-filled industrial tunnel — the kind of low-visibility space that blinds camera-based drones. LiDAR navigation holds steady where there’s nothing for a camera to see.

Challenging-environment flight 1:02

How it works

One tablet flies it. Scout Portal proves it.

Scout Operator runs the flight in the field. Stream it live to specialists outside the asset, upload the captures to Scout Portal after landing for review and reporting, or do both. Either way it runs in the browser, nothing to install.

Scout Operator on the pilot tablet — high-resolution live video, the SLAM 3D map and virtual-cage status on one screen
Scout Operator the pilot’s tablet
Scout Portal open on a desktop monitor — the 3D point cloud, imagery and measurements reviewed and reported in-browser
Scout Portal review & report in-browser
  1. 01

    Set up

    Plug into an outlet. Boot in under two minutes; the drone is tethered and powered the moment the cable connects. Run the pre-flight checklist and activate live streaming, and you’re ready to fly.

  2. 02

    Fly

    600 mm minimum opening. As the drone flies in, it builds a live SLAM 3D map and 12 000-lumen LEDs light the dark, while Auto Surface Scan and Auto Line Scan fly the repetitive geometry.

  3. 03

    Inspect

    The pilot keeps the judgement calls while every capture — 4K video and photos, gas readings throughout, optional UT — is tagged to its position on the 3D map and streamable live to specialists.

  4. 04

    Review & report

    After the flight, upload to Scout Portal: replay and review, run AI analysis, then report, archive and share, all in-browser. More about Scout Portal →

Want to see it on your asset?

The TDBR inspection crew after a cargo-tank inspection with the Scout 137
The TDBR crew after a Scout 137 cargo-tank inspection — the class surveyor approved the tank on the spot.

From the field

“For me as a pilot, I just love the mini-map feature of the Scout App. We can select the working distance, fly really close to the deck transverse and just know it won’t crash with anything.”

Marcio Belleti Chief Pilot TDBR

Flight
BVLOS, no line of sight
Class surveyor
Approved on the spot
Confined-space entry
Eliminated

Specifications

Scout 137 Gen 3

Drone

Dimensions (drone)
448 × 479 × 262 mm
Minimum access opening
600 mm (Ø) circular manway
Weight (drone / case)
3 kg / 16 kg
Max lifting distance with UTM Payload
35 m
Operating temperature
−20 °C to +50 °C
Ingress protection
IP54 (flight electronics)
Data rate
~25 GB / hour

Navigation & compute

LiDAR
128-beam Ouster OS0
Sensing range
0.5 – 75 m (80% reflectivity) 35 m (10% reflectivity)
Field of view
360°
Onboard computer
NVIDIA Jetson Orin NX

Lighting

Output
Up to 12 000 lumen
Mode
Structured (presets) or per-light

Camera

Resolution
3840 × 2160 (4K)
Optical zoom
3.5× with auto-focus
Frame rate / FOV
30 fps 82–25° (zoom-dependent)
Gimbal
2-axis, ±90° pitch

Ground station

Dimensions
385 × 440 × 245 mm
Weight (station / case)
10.7 kg / 28 kg
Input power
200–240 V AC, 50/60 Hz, min 13 A
Ingress protection
IP54
Operating temperature
−20 °C to +50 °C

Tether

Length / weight
60 m 18.5 g/m
Voltage
400 V DC
Data bandwidth
80 Mbit/s
Breaking strength
80 kg
Composition
Kevlar-reinforced, PVC outer / FRP inner

Communications

RF transmitters / receivers
None
GPS / GNSS receivers
None
Data link
Power-line communication (HomePlug AV) over physical tether

Compliance

CE marking
CE marked, certified under IEC 62368-1
EMC testing
EMC tested by Nemko (FCC Part 15 unintentional radiator)
Organisation certification
ScoutDI is ISO 9001 and ISO/IEC 27001 certified

Talk to us

Which asset do you want to fly into first?

Book a live demo with our engineering team. We’ll bring the drone, the payload that matches your job, and the workflow that runs after the flight.

Tell us what to build

More payloads coming.

The modular payload bay is built to grow. Tell us what you'd want next — we read every submission.
