Atmosphere

Safety while you fly.

Name: Scout 137 Gas Sensor Payload
Brand: ScoutDI

NevadaNano MPS 14 flammable gases 15-year sensor.

Continuous flammable-gas detection on every Scout 137 flight — built in, factory-calibrated, logged with position and time. If the atmosphere changes, the inspector knows within 20 seconds. Complements your entry-clearance procedure; doesn’t replace it.

See the workflow Technical specifications

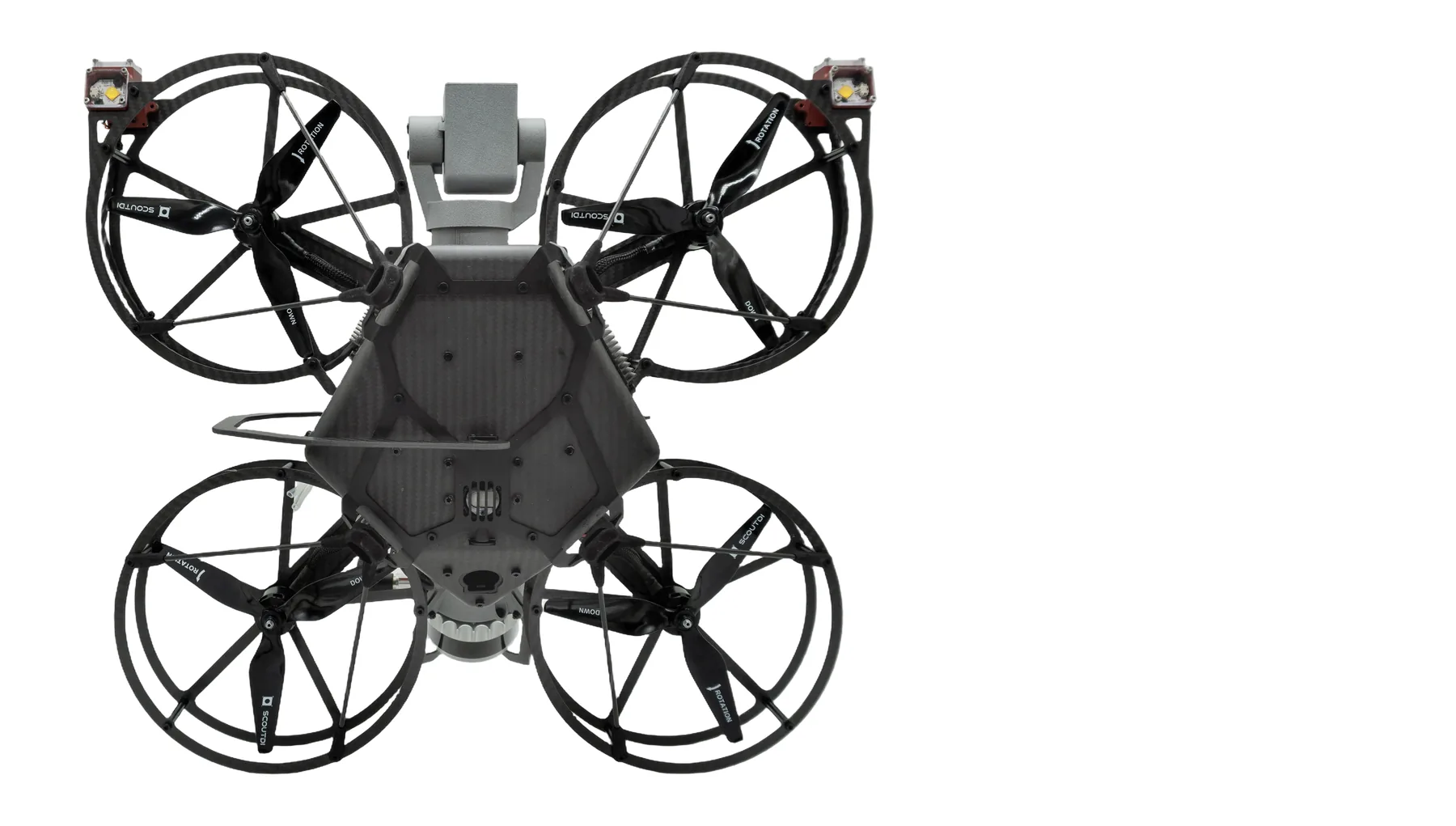

Scout 137 viewed from underneath, showing the carbon-fibre cage, ducted propellers, LED headlights, gimbal-mounted camera, gas-sensor housing in the smartbox, and the tether port

Gases: 14 flammable
Warnings: 20 & 40 %LEL
Calibration: Factory, 15+ yrs
Response: < 20 s

Close-up of the gas-sensor grille in the smartbox underside of Scout 137 — black carbon-fibre body with a small vented opening in the centre that lets ambient gas reach the NevadaNano MPS sensor inside — The gas-sensor grille — smartbox underside, Scout 137.

NevadaNano MPS sensor

14 flammable gases. One sensor.

The NevadaNano MPS detects, quantifies and classifies 14 flammable gases — methane, propane, hydrogen, butane and 10 more — at %LEL accuracy across the full 0–100 %LEL range, via NevadaNano’s TrueLEL™ multi-gas algorithm.

Unlike catalytic-bead sensors, the MPS is immune to poisoning and saturation, and is factory-calibrated for 15+ years — no field calibration, ever.

In practice: one device covers methane in an offshore separator, butane in an LPG vessel, and hydrogen in a refinery sample line. Without swapping anything.

Logged with position & time

Where and when — captured in the data.

Every gas reading is saved with its position and timestamp, captured against the LiDAR’s 3D map of the asset. The full spatial record of where each %LEL value was measured lives in the flight dataset.

Today that location data isn’t surfaced on a map in Scout Operator, Companion or Scout Portal — but because it’s captured, the spatial record is there in the dataset for later analysis or export.

The LiDAR 3D point cloud of the asset — gas readings are saved with their position against this map in the flight dataset

Carbon fibre design

The whole frame is electrically continuous and tied to the tether, so no isolated charge can build up to a spark. Light, stiff, and grounded by design.

Tether port

The tether delivers power, grounds the chassis, and carries live data up to Scout Operator. Battery-free and zero-RF by design — third-party propane-chamber tested with no ignition.

Comes as standard

The sensor lives in the smartbox underside — gas reaches it through a grille and foam vent. Nothing to mount, nothing to swap. Safety should be baseline, not an upgrade.

Honest about ignition

Scout 137 is not ATEX-certified — and no inspection drone in its class is.

ATEX is built for fixed equipment in a defined enclosure. Mobile inspection drones don’t fit. ATEX approval is hard to get for a flying platform — but that doesn’t mean we haven’t done everything we can to make Scout 137 as safe as possible when we designed it. It’s built for verifiable ignition safety from the ground up:

Zero RF — no transmitters, Wi-Fi, Bluetooth, cellular or GPS.
Battery-free — power through the tether.
Chassis grounded — held at ground potential via the tether, not floating.
Static dissipated — the same tether continuously discharges build-up.
Propane-chamber tested — third-party, over an hour with no ignition.

The sensor itself is intrinsically-safe certified under ATEX, IECEx, UL, FM and CSA (S4 format), with EN 50271 and IEC 60079-29-1 compliance. Combined with your operational procedure, this lets Scout 137 work safely in places people shouldn’t be.

01

Power on

Sensor activates automatically with the drone. 1–2 minute initialisation; status appears in the Scout Operator panel.
02

Fly

Fly your inspection as usual. The sensor reads the atmosphere continuously in the background of every other capture — no extra interaction required.
03

Watch

Live %LEL and ambient temperature stream to the Scout Operator panel. When the atmosphere changes, your inspector sees it within 20 seconds — not the next morning, reviewing the flight. Warnings fire automatically at 20 and 40 %LEL.
04

Record

Every reading saved with the flight data — %LEL, ambient temperature, position and timestamp. The spatial record sits in the dataset (not yet shown on a map in Operator, Companion or Portal).

Want to see it on your asset?

Book a live demo Find your distributor

From the supplier

“Unlike catalytic-bead sensors that degrade and require quarterly calibration to maintain accuracy, MPS maintains consistent performance across its operational life — with no service requirements.”

NevadaNano MPS™ Flammable Gas Sensor deployed in oil & gas, refining and chemical gas-monitoring systems

Sensor: NevadaNano MPS
Coverage: 14 flammable gases
Sensor life: 15+ years, no field cal

Sensor

Model: NevadaNano MPS Flammable Gas Sensor (MPSF02-S42505-E0)
Detection range: 0–100 %LEL (across all listed gases)
Resolution: 0.1 %LEL
Response time (T90): < 20 seconds
Accuracy (0–50 %LEL): ±3 %LEL methane ±5 %LEL butane, ethane, hydrogen, isobutane, isobutylene, methyl ethyl ketone, pentane, propylene ±6 %LEL propane ±10 %LEL isopropanol ±12 %LEL octane, toluene, xylene
Gas classification: TrueLEL™ multi-gas (NevadaNano)

Calibration & self-test

Calibration: Factory calibrated — no field calibration required
Sensor life: 15+ years
Self-test: Power-On-Self-Test (POST) + Built-In-Self-Test (BIST)

Certifications (sensor component)

Intrinsic safety: ATEX Zone 0 IECEx UL FM CSA (S4 format)
Functional safety: EN 50271
Performance: IEC 60079-29-1

Environmental

Operating temperature: −20 °C to +50 °C
Humidity: 0 to 100 %RH
Pressure: 80 to 120 kPa

Mount & operation

Mount: Built into the Scout 137 smartbox (underside); gas reaches the sensor through a grille and foam vent. Not a swappable payload.
Warnings: First at 20 %LEL second at 40 %LEL
Activation: Automatic on drone power-on (1–2 min initialisation)

Drone-system ignition safety

RF emissions: None — no transmitters, receivers, Wi-Fi, Bluetooth, cellular or GPS
Power: Battery-free — tethered
Chassis: Grounded through the tether
Validation: Third-party propane-chamber tested — > 1 hour with no ignition.

Talk to us

Continuous gas detection on every flight — and how we make it safe to fly there.

Talk to our team. We walk you through the engineering — zero RF, battery-free, propane-chamber tested — and how it meets your HSE requirements.

Talk to us Find your distributor

Safety while you fly.
